Pipe End Forming Machine

Professional Pipe End Forming Machine Supplier and Manufacturer

Zhangjiagang Nuoda Precision Machinery Co., Ltd. is a professional enterprise engaged in the research and development and manufacturing of metal pipe processing equipment. The company's main products include pipe cutting machines, chamfering machines, CNC pipe bending machines, and pipe end forming machines. Pipe End Forming Machine is a specialized industrial machine designed to shape or form the ends of pipes. It is commonly used in various industries for processes such as expanding, reducing, beading, flaring, or chamfering the ends of pipes.

Introduction to Pipe End Forming Machine

A Pipe End Forming Machine is an industrial machine specifically designed to shape or modify the ends of pipes, allowing for customized end shapes like flanges, beads, flares, chamfers, or expansions to be created based on specific design requirements or industry standards; essentially, it alters the geometry of the pipe's end by applying pressure with specialized tooling.

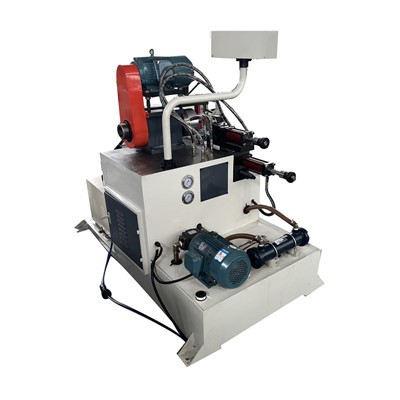

SG60 II Pipe End Forming Machine

Benefits of Pipe End Forming Machinee

Versatility

These machines are versatile and can handle different pipe materials, including metal and plastic, as well as various diameters and thicknesses.

Precision Forming

They provide high precision in shaping pipe ends, ensuring accuracy and consistency in the formed shapes.

Customization

Pipe end forming machines allow for the customization of end shapes according to specific design requirements or industry standards.

Increased Efficiency

The automation of end forming processes contributes to increased efficiency in production, reducing manual labor and cycle times.

Diverse End Shapes

These machines can create a variety of end shapes, including flanges, beads, flares, chamfers, and expansions, meeting different application needs.

Improved Quality

High precision and consistency lead to improved overall product quality, reducing the likelihood of defects in the end-formed pipes.

Reduced Setup Time

Modern pipe end forming machines often come with quick-change tooling systems, reducing setup time when transitioning between different end shapes.

Enhanced Safety

Automation reduces the need for manual handling of pipes during end forming, contributing to a safer working environment for operators.

Optional Process Operations of Pipe End Forming Machine

Flaring: Flaring involves expanding the end of a tube to create a widened opening. This is often done to facilitate better connections with other tubes, fittings, or components. Flaring can be achieved through methods such as cold flaring, hot flaring, or hydraulic flaring.

Beading: Beading refers to the process of forming a raised ridge or bead around the circumference of the tube end. Beading is commonly used to improve the joint strength or provide a sealing surface for hoses, pipes, or connectors.

Swaging: Swaging involves reducing the diameter of the tube end to a specific size or shape. This process is typically performed by applying radial compressive forces to the tube, causing it to conform to the shape of a die. Swaging can be used for reducing the tube diameter, forming tapers, or creating internal or external grooves.

Expanding: Expanding, as the name suggests, involves increasing the diameter of the tube end. This process can be achieved through methods like hydroforming, mechanical expansion, or internal mandrel expansion. Tube expanding is useful for creating a tight fit or ensuring proper sealing with other components.

Flanging: Flanging is the process of creating a flat, raised, or angled rim around the tube end. Flanges are often used to provide attachment points or mounting surfaces for other components, such as flanged fittings or brackets.

Notching: Notching is the removal of a section of the tube end, often to accommodate the mating part or to allow for clearance in assembly. Notches can be made using various cutting methods, including sawing, milling, or laser cutting.

Chamfering: Chamfering involves beveling or sloping the edge of the tube end. This is commonly done to remove sharp edges, facilitate insertion into other components, or improve aesthetics.

What Metals Can Be Processed by Pipe End Forming Machine?

Tube-end forming machines are extremely adaptable and efficient. Their extraordinary endurance and strength enable them to deal with even the most robust metal tubes.

You can use a tub end forming machine to process any metal that can be formed into a tubular shape. Some of the most commonly utilized metals in a tube end forming machine are as follows:

Carbon steel.
Aluminum.
Stainless steel.
Copper.
Nickel and steel alloys.
Brass.

Applications of Pipe End Forming Machine

Tube End Forming Machines are applicable in a number of industries and settings, which makes them a reliable option.

First and foremost, they allow a connection to be made between two distinct kinds of media and are often used in automotive systems to guarantee that a leak-free setting is retained.

They are also used for electrical transmission applications in the automotive and motorcycle sectors, such as fuel lines and exhaust pipes, as well as water transfer pipes. Furthermore, you can typically employ them for furniture fittings and heating, ventilation, and air conditioning (HVAC) parts, especially for high-volume production of both standard tube end forms and more intricate, individualized designs.

General Pipe End Forming Machine Safety Rules

A machine designed for a fixed location must be securely anchored to prevent walking or moving.

No equipment is to be left running while unattended.

Any damage to the machines, tools, fixtures, etc. must be reported to a supervisor immediately.

Machines shall be completely stopped and de-energized before attempting to clear jammed work or debris.

why choose us

Professional Team

Our team has rich market experience to solve efficiency, technology and other problems for customers in different industries.

Professional Service

The company can design and manufacture special specifications of automation equipment and various non-standard mechanical products according to the needs of users and on-site installation.

Advanced Technology

We continuously introduce advanced technology and management methods, and design and manufacture a series of domestically advanced metal processing machinery.

Broad Market

Our customers are located in the automotive, industrial packaging, shipbuilding, boiler, fitness equipment, bicycles, electric vehicles, motorcycles, furniture, security doors and windows and other industries.

Warranty period of Pipe End Forming Machine

Depending on the quality of the goods, warranty durations might vary widely across manufacturers. Tube end-forming machine manufacturers often provide a one-year guarantee to their customers. During this time, you may report any problems or accidents with your machine, and the manufacturer will compensate you.

A guarantee implies that the manufacturer accepts ownership of its goods, hence enhancing the client's confidence in the manufacturer. It is also evidence that the product has been tested and can do your task well.

Nuoda Precision Machinery is a professional enterprise. You are welcome to contact us, Email: 1015347377@139.com

FAQ

Q: What is the basic rule in pipe end forming machine safety?

A: Pipe end forming machine is to be left running while unattended. Any damage to the machines, tools, fixtures, etc. must be reported to a supervisor immediately. Machines shall be completely stopped and de-energized before attempting to clear jammed work or debris.

Q: Pipe end forming machine: What is the end-forming process?

A: End-forming is a process that is used to change the geometry of a tube, typically at or near the end of the material. The process dates back many decades: once done with castings, manufacturers have now transitioned to custom, machine-forming for cost efficiency.

Q: How to choose a suitable pipe end forming machine?

A: A top-quality tube end-forming machine definitely helps your company grow and allows you to take on and ensure timely delivery of higher capacity orders.
· Material.
· Performance.
· Installation
· Sizes and shapes.

We're professional pipe end forming machine manufacturers and suppliers in China, specialized in providing high quality products and service. We warmly welcome you to buy durable pipe end forming machine at competitive price from our factory.
